Hide pullers Engineering products

Steriline Engineering, world-class designer of hide puller machines, has been manufacturing quality hide pullers for the meat industry in Australia and around the world for decades.

Use a Steriline Engineering hide puller, and experience pristine hide removal.

The Steriline Engineering Hide Puller is a highly durable, robust, leading edge designed machine focusing on reliability, hygiene, safety and compliance.

Steriline Engineering has been manufacturing hide pullers for over 30 years. The machines have evolved continuously from inception to the highly sophisticated hide pullers manufactured today.

they do not break down, they operate efficiently and effectively at all line speeds.

^{Quote by Dan Galvin, Dawn Meats Group}

Hygienic Hide Pullers

Steriline Engineering hide pullers introduced a higher level of the hygienic removal of hide, through their downward operation. It is this downward pulling process that greatly reduces the risk of cross contamination, as animal matter is not spread above the machine, eliminating the chance of any descending during the next process cycle.

To further protect against contamination, the Steriline probe unit is sterilized between each cycle. The probe sterilizing unit has a continuous cycle of hot water to enable the probe to be dipped into the unit for decontamination.

Provision of the highest hygiene standards does not end there, with optional hand wash and steriliser basins, for cleaning and sterilising hands and knives between each carcass, decontamination between each animal is ensured.

Unrivalled Hide Pulling Safety

Our hide pullers provide the safest experience for operators, assistants and surrounding personnel. Safety is a priority in Steriline hide pullers and we continuously look to innovate our machines to provide a safer work environment.

Hide Puller Safety Compliance

Safety Interlock Category 3 compliance is standard on Steriline Engineering hide pullers. These safety upgrades from the original machines incorporate:

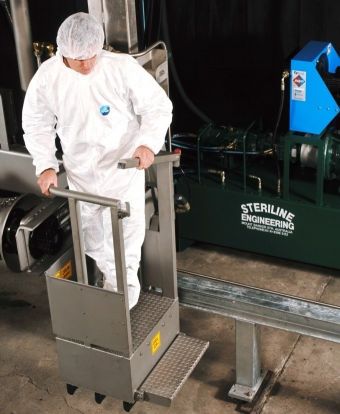

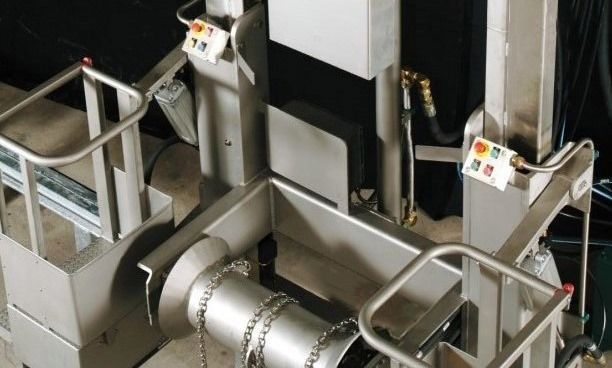

• Individual locking safety bars for the operator’s and assistant’s rise and fall platforms, providing safety while working at heights and also ensuring the operators and assistants remain secure on the platforms during the probe and drum operation;

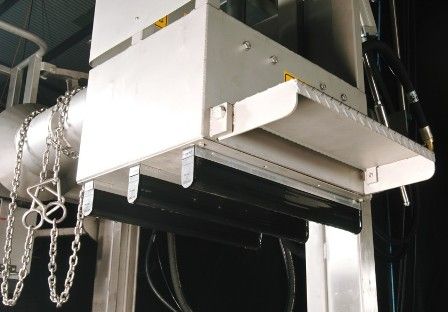

• Bump safety strips on the bottom of each platform, with in built sensors to automatically shut down the machine if there is an obstruction below the platform, providing a safer environment for any personnel underneath the platforms.

The Steriline Engineering downward hide puller is compliant to Safety Interlock Category 3, in electrical and hydraulic systems. This feature enhances the safety of the rise and fall platforms as well as the winch drum rotational control. These improved control features provide:

• Improved sensitivity of operation controls with proportional rise and fall, and drum speed;
• Smoother rotation of the drum, resulting in greater hide quality retention;
• Increased safety for operators at heights and during movement;
• Higher grade of carcass than previously achievable after hide removal.

As safety is paramount for Steriline Engineering, our machines are also fitted with the following safety features:

• Probe unit safety guards to prevent accidental shock to operators;
• Safety indicator probe light to identify when probe has power on;
• Emergency stop button to power down machine in the event of an emergency;
• Isolating switch to allow for safe cleaning and maintenance;
• Extendable platforms to reduce over extension and strain on the operators, improving working condition ergonomics;
• Foldable step to platforms to increase ease of ascension, improve safety and meet step height regulations;
• Identification labels for controls and safety hazards.

When considering a hide puller machine, remember, Australian Occupational Health, Safety and Welfare regulations require every employer to provide a safe workplace under the duty of care. The Safety of Machinery Australian Standard AS4024.1 means all control systems must be compliant with Safety Interlock Category 3 rating. Steriline Engineering hide puller machines meet these safety standards, and are also compliant to European CE Certification, meaning they are safe to be used world-wide.

Steriline Hide Pullers – Reliable and Robust

Consistent Hide Pulling Performance

Steriline Engineering machines are well known around the world for their reliability. They continually produce high quality hides at optimal speed to enhance production line productivity.

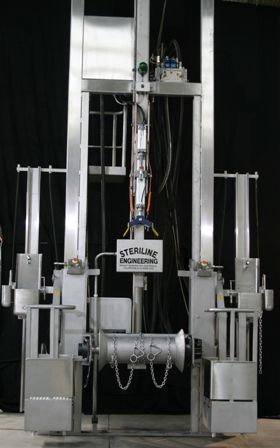

• The Steriline Engineering Single Ram Hide Puller is capable of production rates up to 120 cycles per hour (or one cycle every 30 seconds).
• The probe unit of the Steriline machine enhances the carcass stiffness to prevent vertebrae separation, maintaining meat quality. The probe also incorporates adjustable positions to allow for varying size animals on the one machine.
• The machine includes a touchscreen hydraulic controller to manage operational and safety functions.
• The machine also incorporates automatic hide release chains, which eliminate operator intervention and increases cycle speed.

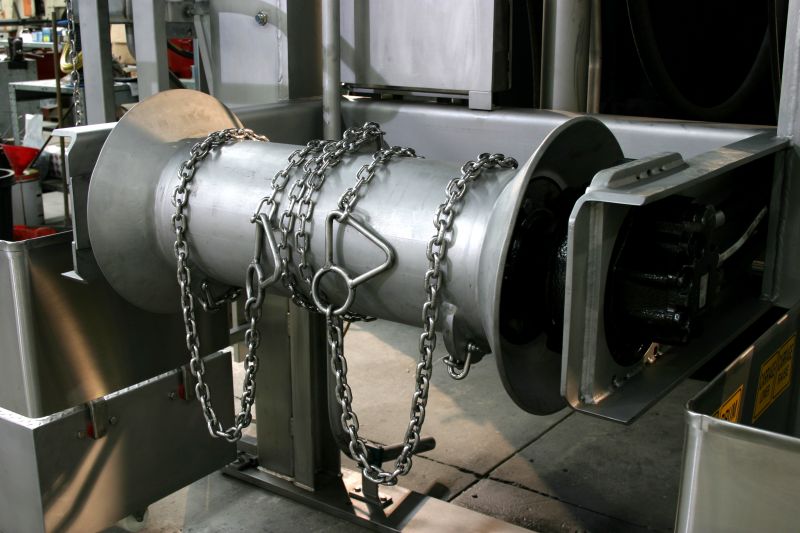

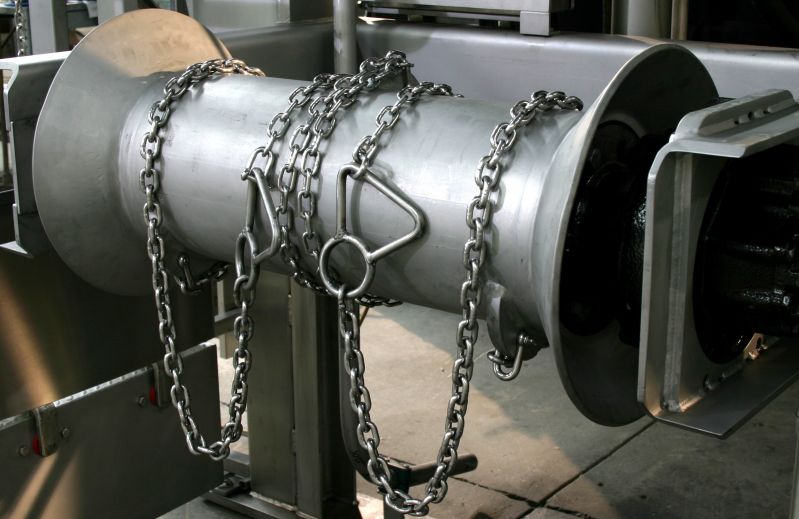

• The tapered flange drum improves accuracy for hide collection onto the drum, making the process faster and protecting the hide from damage.

Structural Integrity for decades

The Steriline Engineering products are well known for their durability, even in the harsh conditions of an abattoir, our machines have been designed to stand up to the environment.

Steriline hide pullers are manufactured from high-grade steel, with options of stainless steel or galvanised construction to suit individual customer requirements and environments.

The robust and highly efficient power pack consists of a 22kw electric motor, oil cooler and two separate load sensing pistons pumps. This hydraulic system is designed to minimize energy consumption and heat generation, thus minimizing wear, ensuring your machine lasts longer.

Cost Effective Life Cycle

When considering the purchase of a hide pulling machine, it is not only the initial cost that should be considered. As an integral part of the production line for an abattoir, any costs associated with a production line shutdown should be considered. Steriline Engineering hide pullers have a reputation for not breaking down, an important factor to consider when assessing production line shut down costs.

Consistent Responsiveness

Continual Support

Steriline Engineering has a formidable reputation for reliability, practicality, and durability, not only for its hide puller machine but also when it comes to technical support. Steriline is well known for working with customers and providing continuous support for the life of their products, which because of the product durability can be a very long time.

Specialised Steriline Technicians can provide training for your staff in the safe operation and maintenance of the hide puller, along with an annual service to ensure the machine continues to outperform. We are always readily available with troubleshooting advice, product manuals, and spare parts.

Innovative Leader

Steriline leads the industry with reliable product innovation, working with customers to achieve desired outcomes. We are always looking forward to producing intelligent solutions using the latest technologies. Steriline has proven to be the innovator the industry looks to:

• Implementing safety features on machines to meet required standards
• Providing higher processing speeds
• Utilizing latest advances in technology for operation of machines, including touchscreen hydraulic controller to manage operational and safety functions

Steriline has a recognized reputation of over 30 years in the industry demonstrating our commitment to working with the industry into the future.
